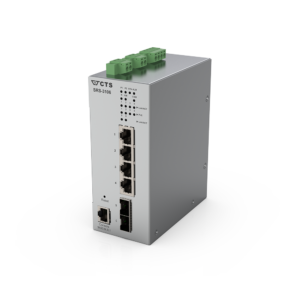

SRS-3106-4BT
4 x 10/100/1000Base-T RJ-45 with
IEEE 802.3bt 90W PoE++ injector +
2 x 100/1000Base-X SFP Managed Rugged PoE Switch
SRS-3106-4BT features not only two 100/1000Base-X SFP slots, but four 10/100/1000Base-T RJ-45 ports equipped with IEEE 802.3af/at/bt PoE injectors, capable of delivering up to 90W per port with a total power budget of 300W.
Environmental Condition Operation: -20˚C ~ 60˚C
Storage: -30˚C ~ 70˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 56.5 x 110 x 135 mm (W x D x H)
Weight: 0.57 Kg
Housing: Aluminum, IP30
Features
The SRS-3106-4BT is a smart and rugged switch designed for demanding environments with high temperature fluctuation ranging from -20°C to 60°C. It features 4 PoE ports compliant with IEEE 802.3af/at/bt standards, delivering up to 90W per port and a total power budget of 300W. With Auto PoE Power Off, the switch ensures efficient power management by disabling PoE when no powered device is detected. Additionally, it offers dual power input for enhanced reliability and flexibility in power sourcing.
This robust switch is ideal for demanding applications such as surveillance systems, enterprise networks, and outdoor installations, where high-power PoE, resilient network architecture, and robust environmental performance are paramount.
Power Over Ethernet
Data flows and the electrical current are carried over the same Ethernet cable. The feature can significantly reduce the otherwise extensive wiring installations
PoE Scheduling
Arrange the PoE schedule and specify the timing of PoE power-on and -off for each port to effectively manage the total power budget
Power Redundancy
Transition to the other redundant power module if either of the power sources is down
Loop Detection
Automatically prevent the switching loops that cause network congestion and failures, and keep your service steadily running as planned
Dual Rate Fiber
Automatically sense and adjust the fiber speed when changes are made in the network environment, and so facilitate a longer lifespan of the product
Dual Image
Safeguard against permanent system crash from firmware upgrade failures
IPv4/IPv6 Dual Stack
Able to run IPv4 and IPv6 in parallel and be interoperable with other IPv4 / IPv6 / dual-stacked devices, which enables IPv6 management, IPv6 packet forwarding, and MLD v1/v2 Snooping
Intelligent Diagnostics
Allow system operational monitoring in real-time, and instantly fault-identify SFF-8472-specification-compatible optical modules according to user-defined threshold parameters
Fanless Design
Designed without a built-in fan which oftentimes results in constant annoying buzzing sounds. The feature prevents the harmful effects of a disruptive environment
DIN-rail Installation
Supports DIN-rail installation method
-20 ~ 60 degree C
To boasts an extended temperature range, enabling operation from -20 to 60 degree C

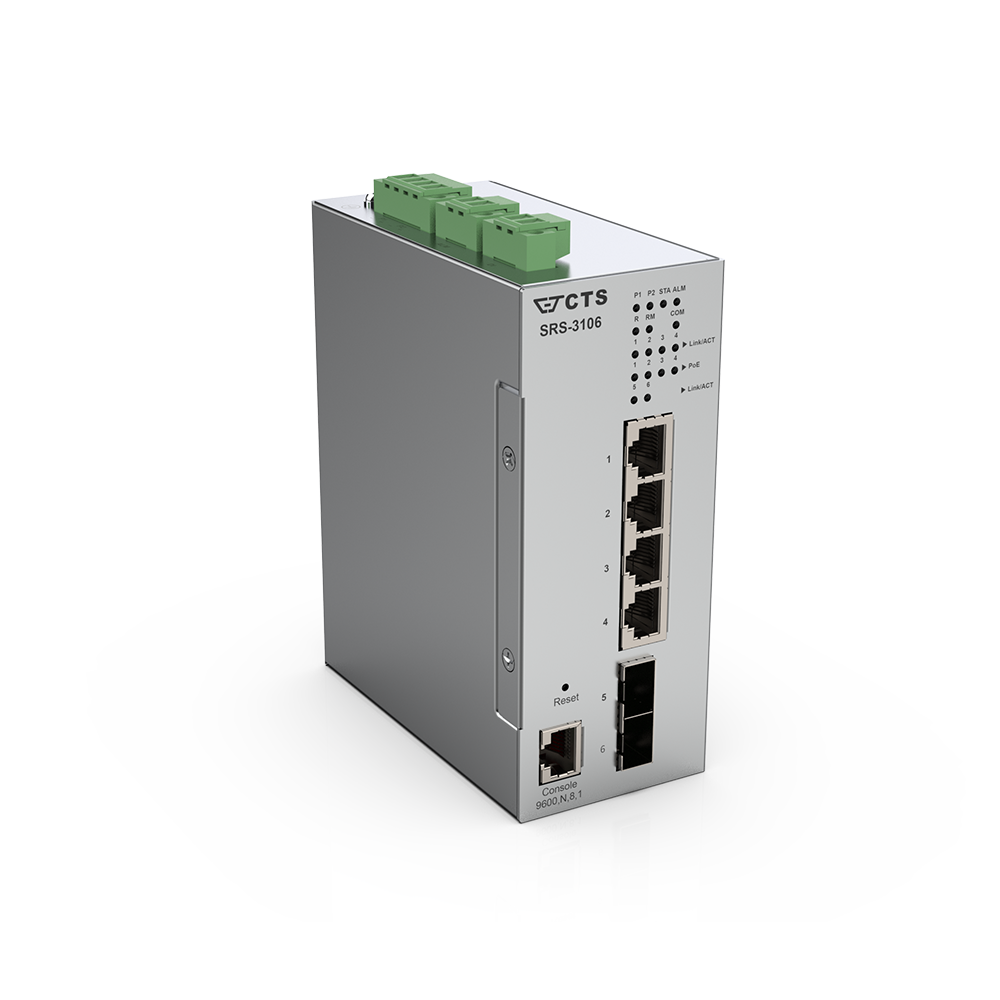

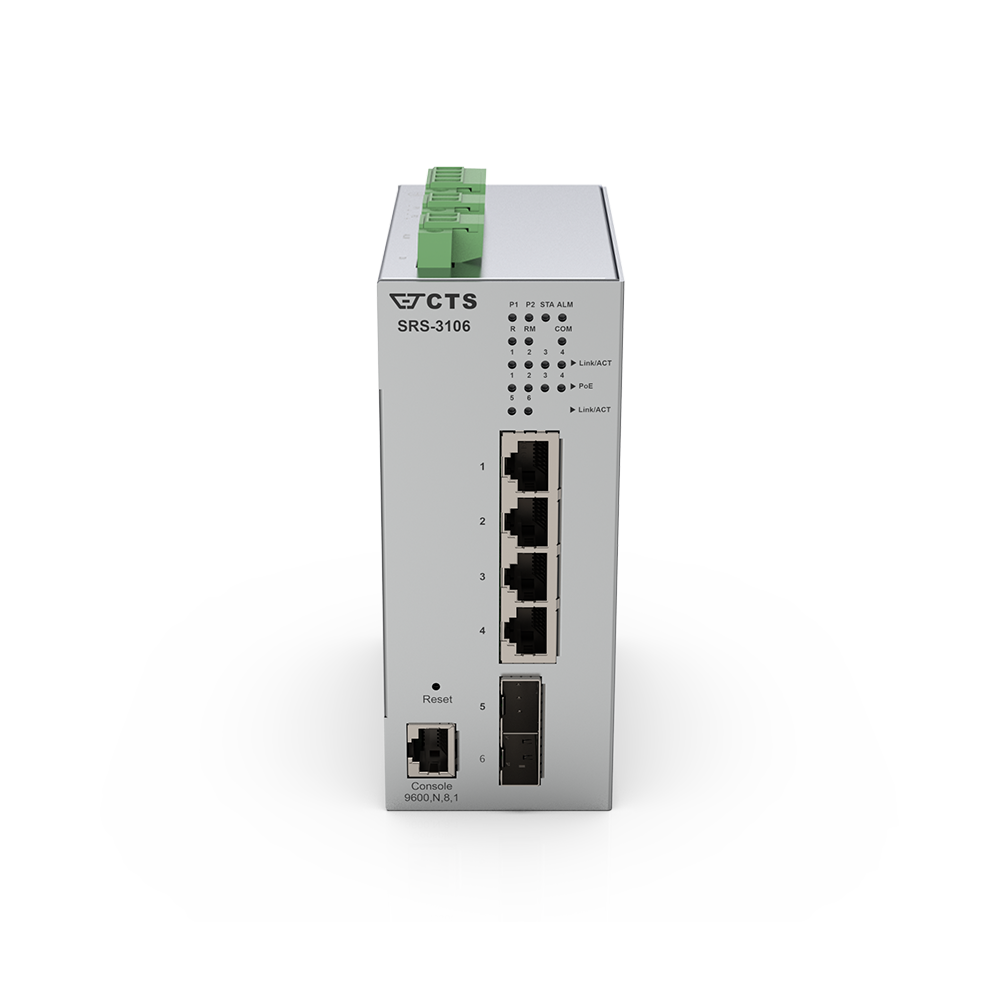

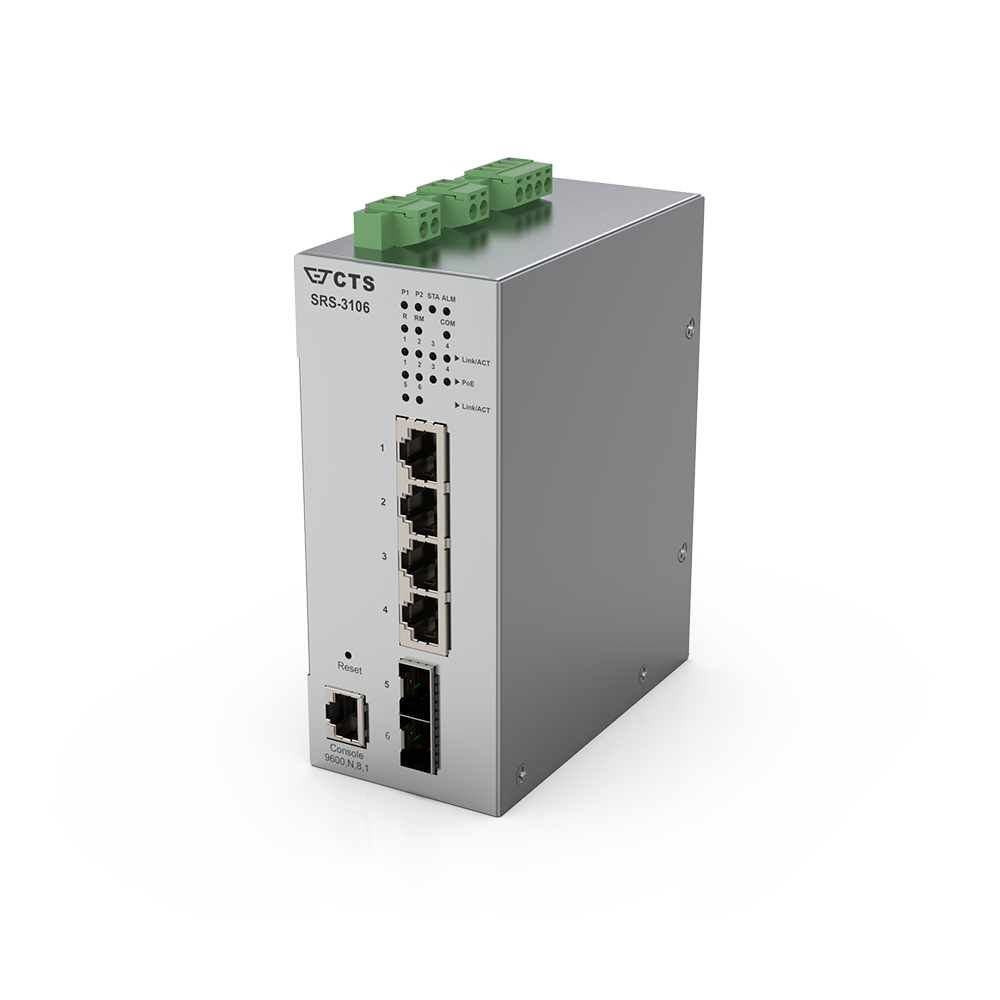

Hardware Overview
Specification
Interface
- Fiber Port
– 2 x 100/1000Base-X SFP - RJ-45 Port
– 4 x 10/100/1000Base-T RJ-45 with IEEE
802.3af/at/bt Injector, up to 90W output - Console Port
– 1 x RS-232 to RJ-45 Serial Port - Terminal Block
– 1 x Digital Output (Alarm Relay)
Relay Output with current carrying
capacity of 1A @ 24VDC
– 1 x Digital Input (Dry Contact)
LED
- P1, P2, STA, ALM
- Ring, Ring Master, COM,
- Link/Act/Speed, PoE
Power Over Ethernet
- Total PoE budget: 300W
- Up to 90W PoE output per port
Power Requirement
- Dual DC Input: 48~57 VDC
(4-pin removable terminal block) - Recommend PoE Output Requirement Voltage
– IEEE 802.3at: 50~57VDC
– IEEE 802.3bt: 52~57VDC - Max. Power Consumption: 313W (1068 BTU/h)
Hardware
- MAC Address Table: 2K
- Non-blocking Switching Fabric: 12Gbps
- Throughput @ 64Bytes: 8.928Mpps
- Jumbo Frame: 9K Bytes
- Packet Buffer: 1Mbit
- Store and Forward Switching Mechanism
- Auto-Cross over for MDI/MDI-X in TP ports
- Auto-Negotiation in TP Ports
- Full/Half Duplex Mode Operation
Environmental Condition
- Operation: -20˚C~60˚C
- Storage: -30˚C~70˚C
- Humidity: 5%~90% RH, Non-Condensing
Standards & Certifications
CE/FCC Class A
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
- ESD
– Air Discharge: +/-8kV
– Contact Discharge: +/-4kV - EFT
– DC Input: +/-0.5kV
– Signal (RJ-45): +/-0.5kV - Surge Protection
– DC input +/-0.5kV
– Signal (RJ-45): +/-6kV
Freefall/Shock/Vibration
- IEC 60068-2-32
- IEC-60068-2-27
- IEC-60068-2-6
UKCA/RCM
RoHS 2.0
Dimension & Weight
- Size: 56.5 x 110 x 135 mm (W x D x H)
- Weight: 0.57 Kg
- Housing: Aluminum, IP30
Topology
Application Diagram
Model
Model | Fiber Slot | TP Port | Power Source | |||
Speed | Type | Slot | Speed | Port | ||
SRS-3106-4BT | 100/1000 | SFP | 2 | 10/100/1000 | 4 with 802.3bt 90W injector | Dual 48~57V DC with 4-pin removable terminal block |
Download
Model | Info | Version | Download file |
SRS-3106-4BT | Datasheet | A02 | |
SRS-3106-4BT | User's Manual (HW) | V0.9 |
*To update the firmware, unzip the .zip file and upload the *.bin file.
*To use *.mib file for SNMP service, unzip the .zip file.
