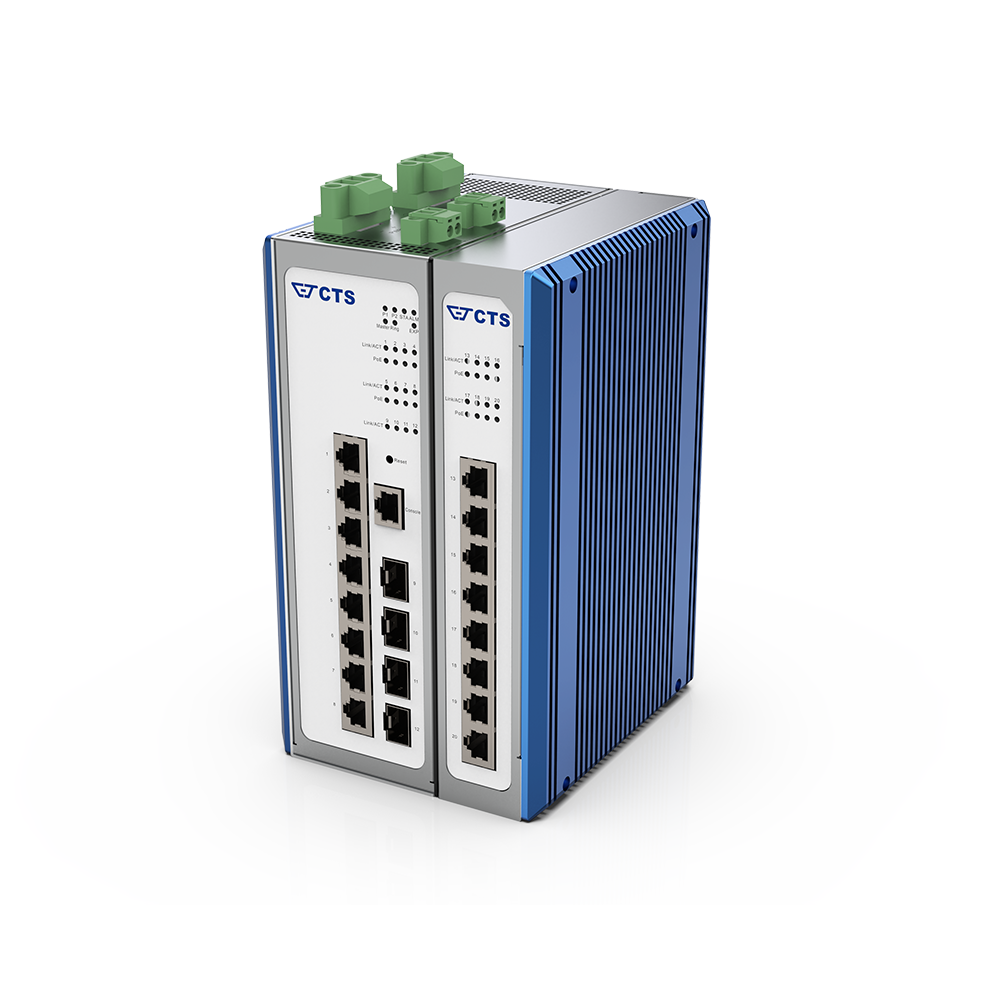

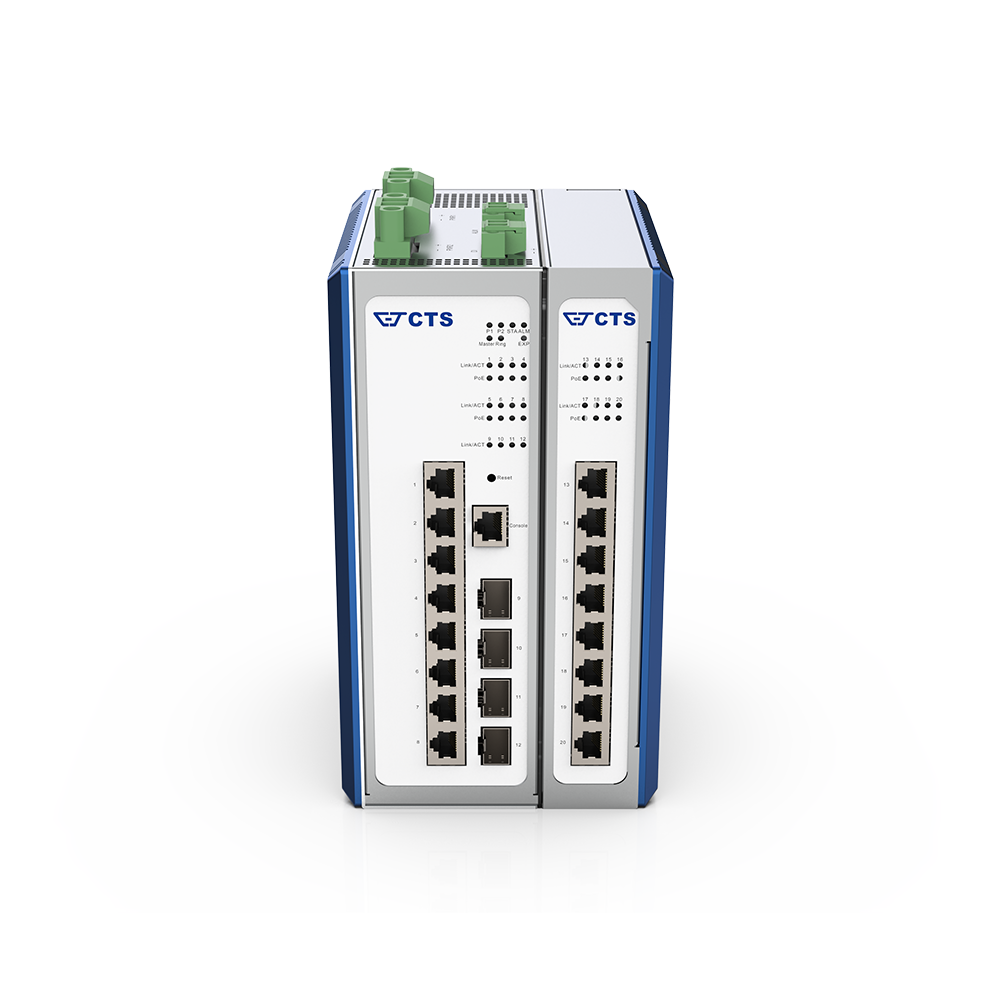

IPS-3120-PoE++
20-Port Managed Industrial 60W PoE Switch with 4-Port SFP
Connection Technology Systems (CTS) IPS-3120-PoE++ Industrial PoE Switch is the Fast & Gigabit Ethernet 10/100/1000Base-T to 100/1000Base-X Industrial PoE Switch.
The IPS-3120-PoE++ switches the traditional twist-pair RJ45 cable into various fiber optics media. It offers easy management of uplink port (4 x port fiber). The fiber optical port of IPS-3120-PoE++ can support various connection distances via multi-mode fiber, single-mode fiber or Bi-directional single-mode fiber for the deployment to the control room, warehouse or factory.
Environmental Condition Operation: -40˚C ~ 75˚C
Storage: -40˚C ~ 85˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 115 x 135 x 200 mm (W x D x H)
Weight: 3 Kg
Housing: Aluminum, IP30
Features
The IPS-3120-PoE++ Industrial PoE Switch is designed for deployment at industrial sites. With DIN-rail mounting, you can easily mount the Industrial PoE Switch at your sites such as factory or warehouse. The terminal blocks provide power redundancy to prevent any possible power outage and digital input/output to serve as an alarm
Power Over Ethernet
Data flows and the electrical current are carried over the same Ethernet cable. The feature can significantly reduce the otherwise extensive wiring installations
PoE Scheduling
Arrange the PoE schedule and specify the timing of PoE power-on and -off for each port to effectively manage the total power budget
Power Redundancy
Transition to the other redundant power module if either of the power sources is down
Lightning Protection
Protect ports from power surges due to lightning or improper electrical wiring
Dual Rate Fiber
Automatically sense and adjust the fiber speed when changes are made in the network environment, and so facilitate a longer lifespan of the product
Dual Image
Safeguard against permanent system crash from firmware upgrade failures
DHCP Auto Provisioning
Automatically upgrades the firmware and configuration from DHCP server to save maintenance cost
Specification
Interface
- Fiber Port
4 x 100/1000Base-X SFP Slot - RJ-45 Port
8 x 10/100/1000Base-T RJ-45 with Max. 60W PoE Injector (compatible with IEEE 802.3af/at)
8 x 10/100/1000Base-T RJ-45 with 802.3af/at PoE+ injector - Console Port
1 x RS-232 to RJ-45 Serial Port - Terminal Block
1 x Digital Output (Alarm Relay)
1 x Digital Input
LED
- P1, P2
- STA, ALM, EXP
- Master, Ring
- Link/ACT
- PoE
Power over Ethernet
- 8 x 60W PoE (Compatible with 802.3af/at)
- 8 x 30W PoE (Compatible with 802.3af/at)
- Total PoE budget: 720W
Power Requirement
- Input DC: 48~54VDC
- Redundant Input Terminals
- Caution: Use 14AWG or better powering wire
- Max. Power Consumption: 740W
Dimension & Weight
- Size: 115 x 135 x 200 mm (W x D x H)
- Weight: 3 Kg
- Housing: Aluminum, IP30
Hardware
- MAC Address Table: 8K
- Non-blocking Switching Fabric: 40Gbps
- Jumbo Frame: 9K Bytes
- Store and Forward Switching Mechanism
- Auto-Cross over for MDI/MDI-X in TP port
- Auto-Negotiation in TP Port
- Full/Half Duplex Mode Operation
Environmental Condition
- Operation: -40˚C ~ 75˚C
- Storage: -40˚C ~ 85˚C
- Humidity: 5% ~ 90%, Non-condensing
EMC/Safety
- CE, FCC Class A
- ITU-T K.21
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
Model
Model | Fiber Port | TP Port | Power Source | ||||
Speed | Type | Ports | Speed | Ports | |||
IPS-3120-PoE++ | 100/1000 | SFP | 4 | 10/100/1000 | 8 with Max. 60W PoE injector | 48~54VDC Terminal Block with 2 Power input | |
8 with 802.3af/at PoE injector | |||||||
Download
Model | Info | Version | Download file |
IPS-3120-PoE++ | Datasheet | A04 | |
IPS-3120-PoE++ | Quick Installation Guide | V0.91 | |
IPS-3120-PoE++ | User's Manual (NMS) | V0.90 | |
IPS-3120-PoE++ | Firmware | 1.00.06 | |
IPS-3120-PoE++ | MIB-file | 1.00.06 |
*To update the firmware, unzip the .zip file and upload the *.bin file.
*To use *.mib file for SNMP service, unzip the .zip file.
