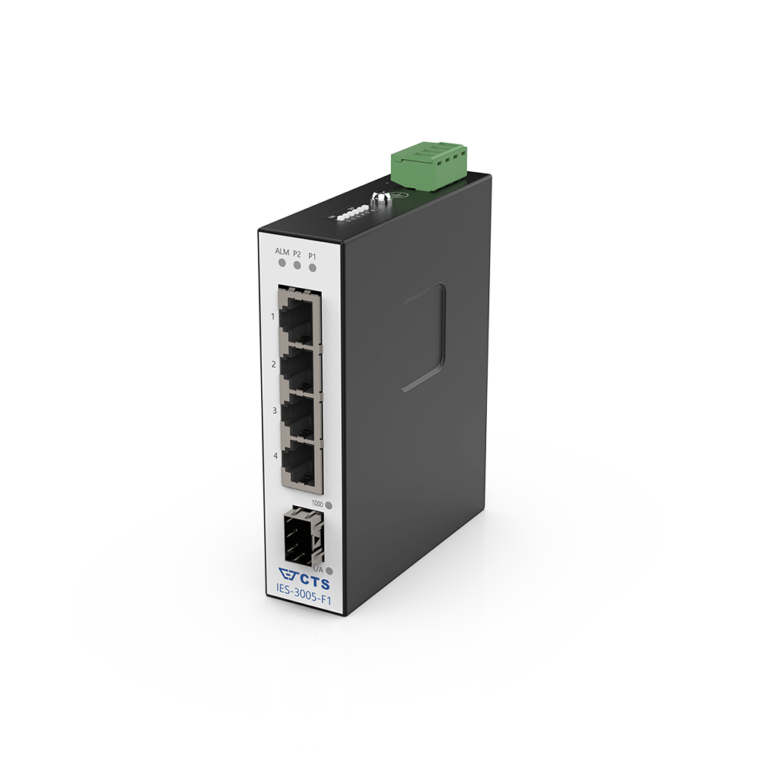

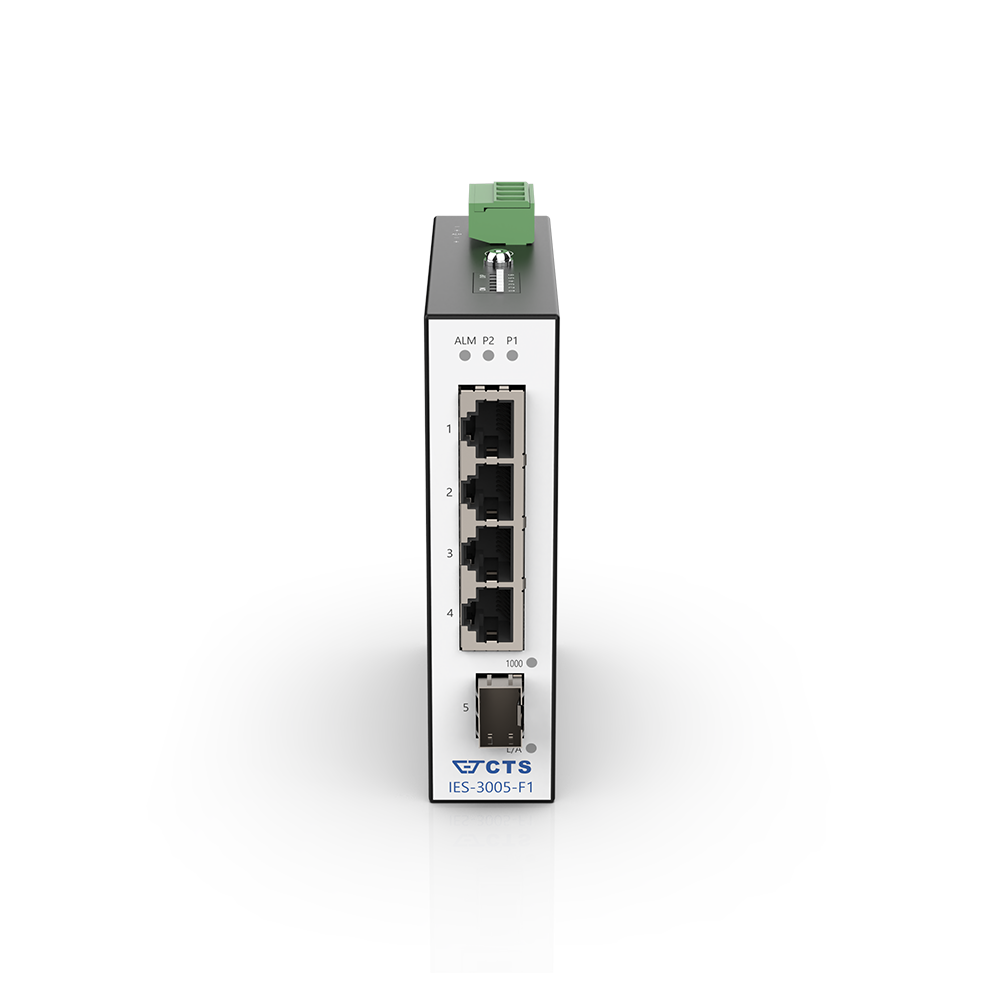

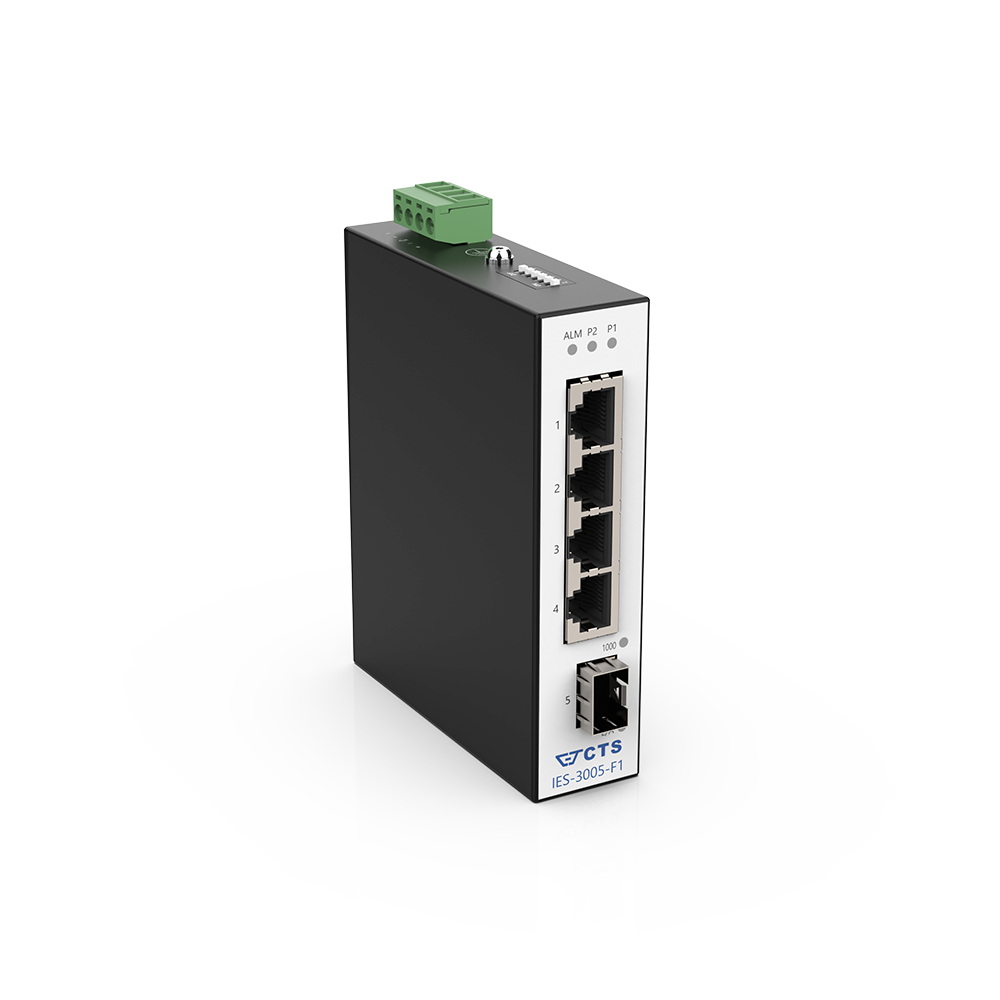

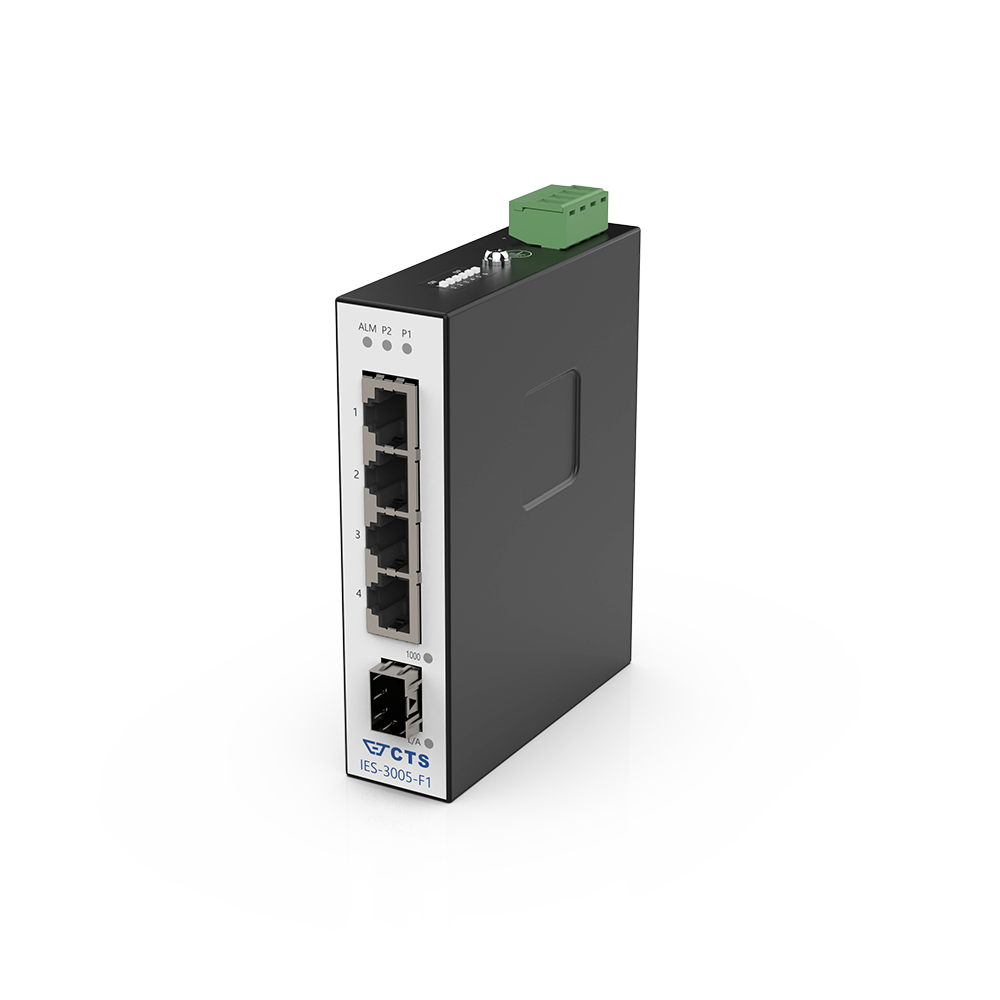

IES-3005-F1
CTS IES-3005-F1 provides 5 Gigabit Ethernet ports to fulfill the needs of the rapid growth of communication traffic of Industrial network. To make the network truly plug-and-play, they are designed to fit in standard industrial applications without complex setup. CTS IES-3005-F1 also feature temperature-hardened designs with high reliability, they are able to overcome harsh environment, which is common in industrial applications.
Environmental Condition Operation: -40˚C ~ 75˚C
Storage: -40˚C ~ 85˚C
Humidity: 5% ~ 95%, Non-condensing
Dimension Size: 29.1 x 89.4 x 109.2 mm (W x D x H)
Weight: 0.29 Kg
Housing: Aluminum, IP30
Features
– 9K Jumbo frames
– L2 wire-speed switching engine
– 2K MAC forwarding addresses
– Fanless & wide operating temperature range
(-40 to +75°C)
– Dual power input (12~58 VDC) & Reverse power protection
– IP30
– DIN-Rail and Wall mounting option
– Hi-POT 1.5kV
Lightning Protection
Protect ports from power surges due to lightning or improper electrical wiring
Power Redundancy
Transition to the other redundant power module if either of the power sources is down
Dual Rate Fiber
Automatically sense and adjust the fiber speed when changes are made in the network environment, and so facilitate a longer lifespan of the product
Plug-and-play
No more complex, error-prone configuration prior to deployments, and maximum device compatibility in system integration
Specification
Interface
- 4 x 10/100/1000Mbps (RJ-45)
- 1 x 100/1000Mbps (SFP)
LED
- P1
- P2
- ALM
- Link & Speed
Power Requirement
- Redundant Power Input
- Reverse power protection
- Input voltage range: 12-58 VDC
Hardware
- Store and forward L2 wire-speed/
non-blocking switching engine - MAC addresses: 2K
- Jumbo frames: 9K Bytes
- Auto-negotiation in TP ports
- Auto-crossover for MDI/MDIX in TP ports
Standards
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX/FX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3z 1000Base-X
Environmental Condition
- Operation: -40˚C ~ 75˚C
- Storage: -40˚C ~ 85˚C
- Humidity: 5% ~ 95%, Non-condensing
EMC/Safety
- Vibration, shock & freefall: IEC60068-2-6,
-27, -32 - Certi cation compliance: CE/FCC
- Electrical safety: CE
- EMC: FCC Part 15, CISPR 22 (EN55022)
Class A, IEC61000-4-2, -3, -4, -5, -6 (Level 3) - RoHS and WEEE: RoHS (Pb free) and WEEE
compliant
Dimension & Weight
- Ingress protection: IP30
- Installation option: DIN-Rail mounting, Wall mounting
- Dimension: 29.1 x 89.4 x 109.2 mm (W x D x H)
- Weight: 0.29 Kg
Model
Model | Description | Interface | ||||
10/100/1000 BaseTX | 100/1000Mbps SFP | |||||
IES-3005-F1 | Industrial 5-Ports Gigabit Ethernet Switch with 1-port SFP | 4 | 1 | |||
Download
Model | Info | Version | Download file |
IES-3005-F1 | Datasheet | A02 | |
IES-3005-F1 | User's Manual (HW) | V1.0 |
