HES-3106B
6-Port Management Gigabit Ethernet CPE Switch

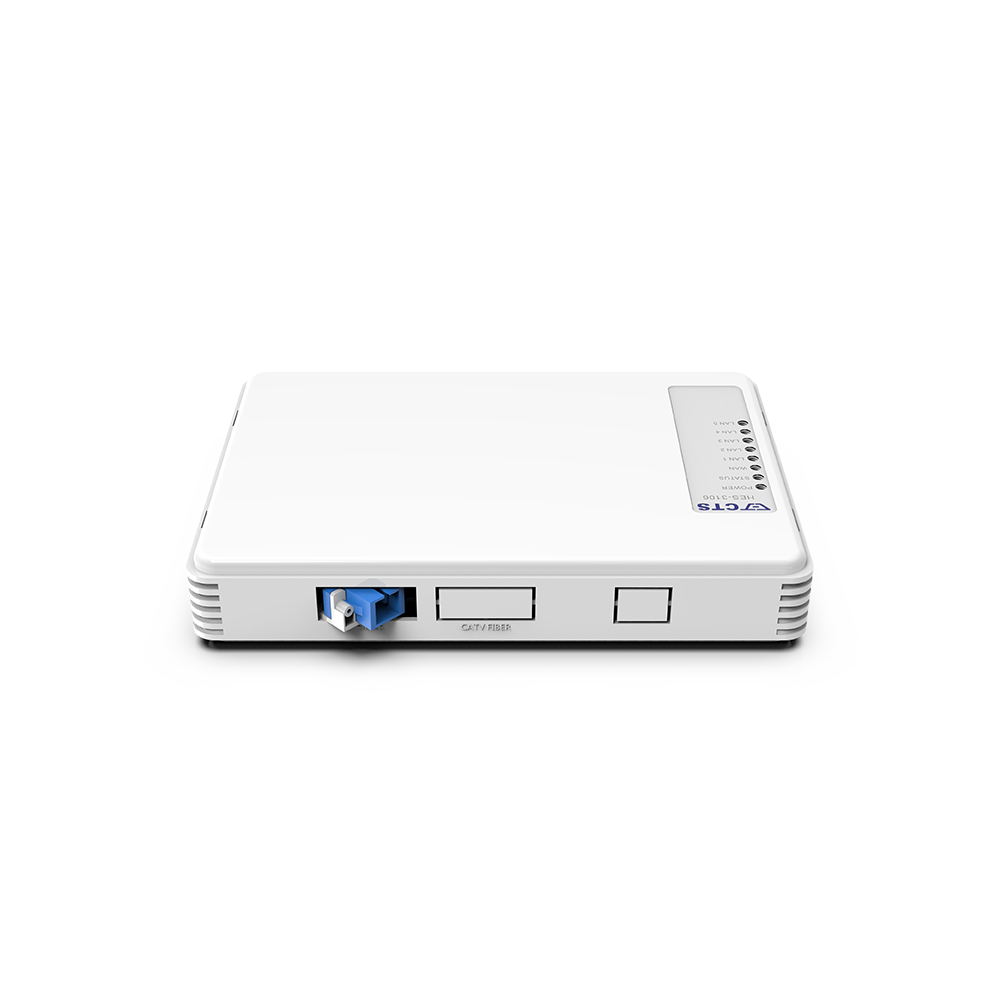

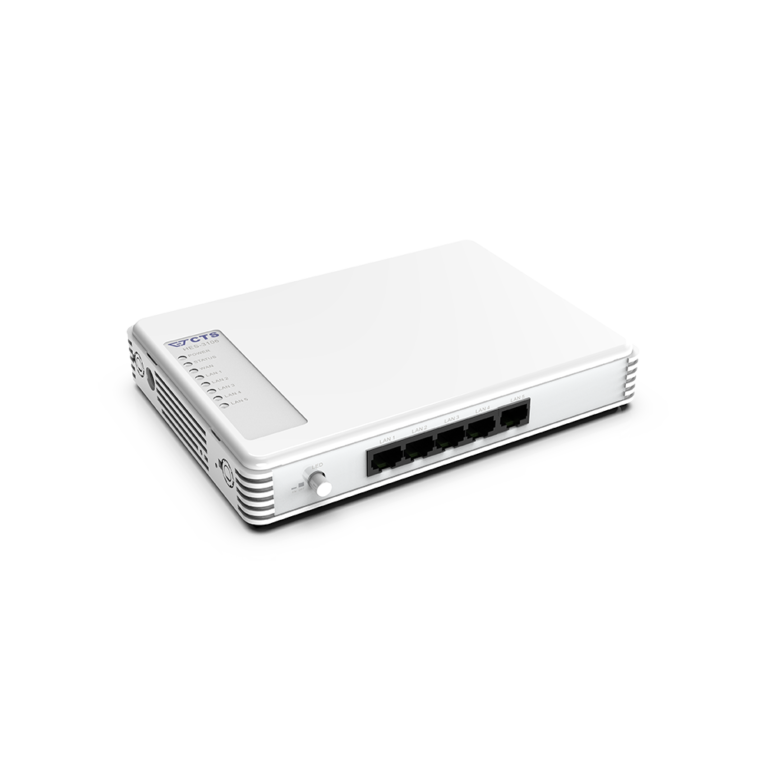

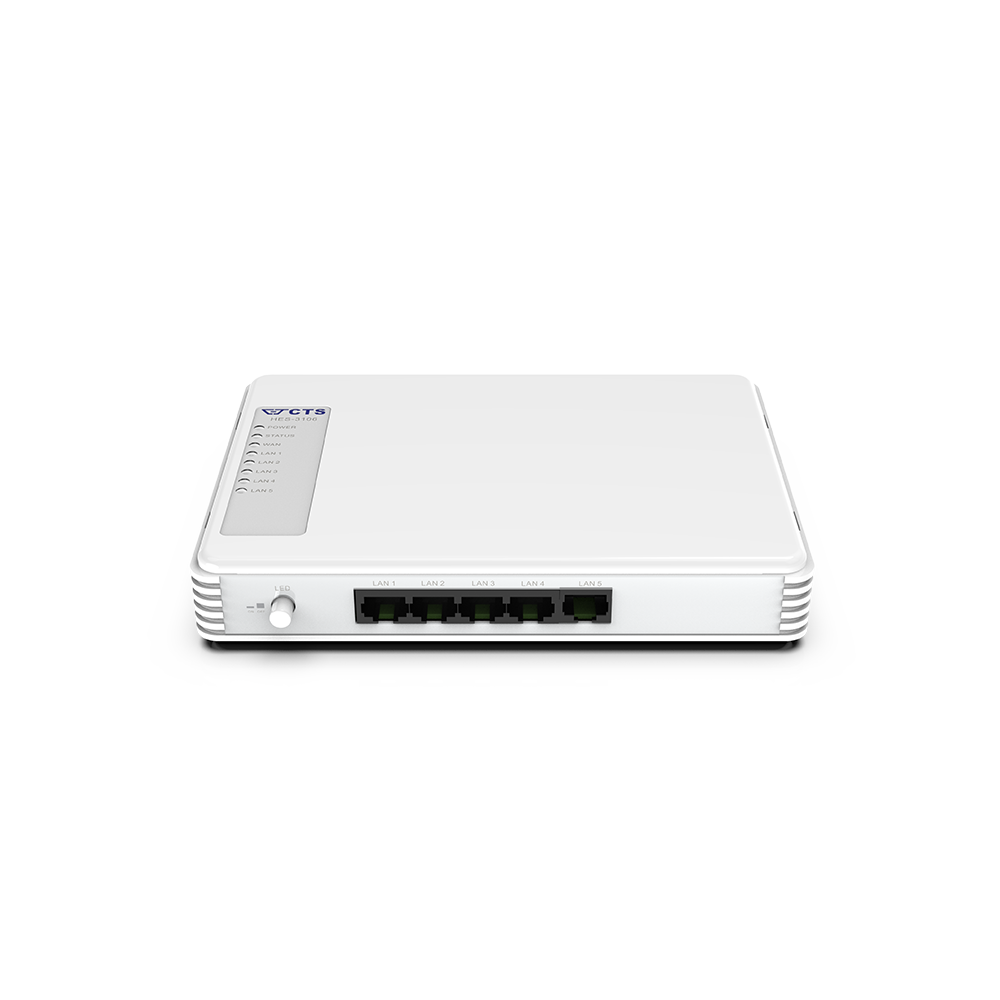

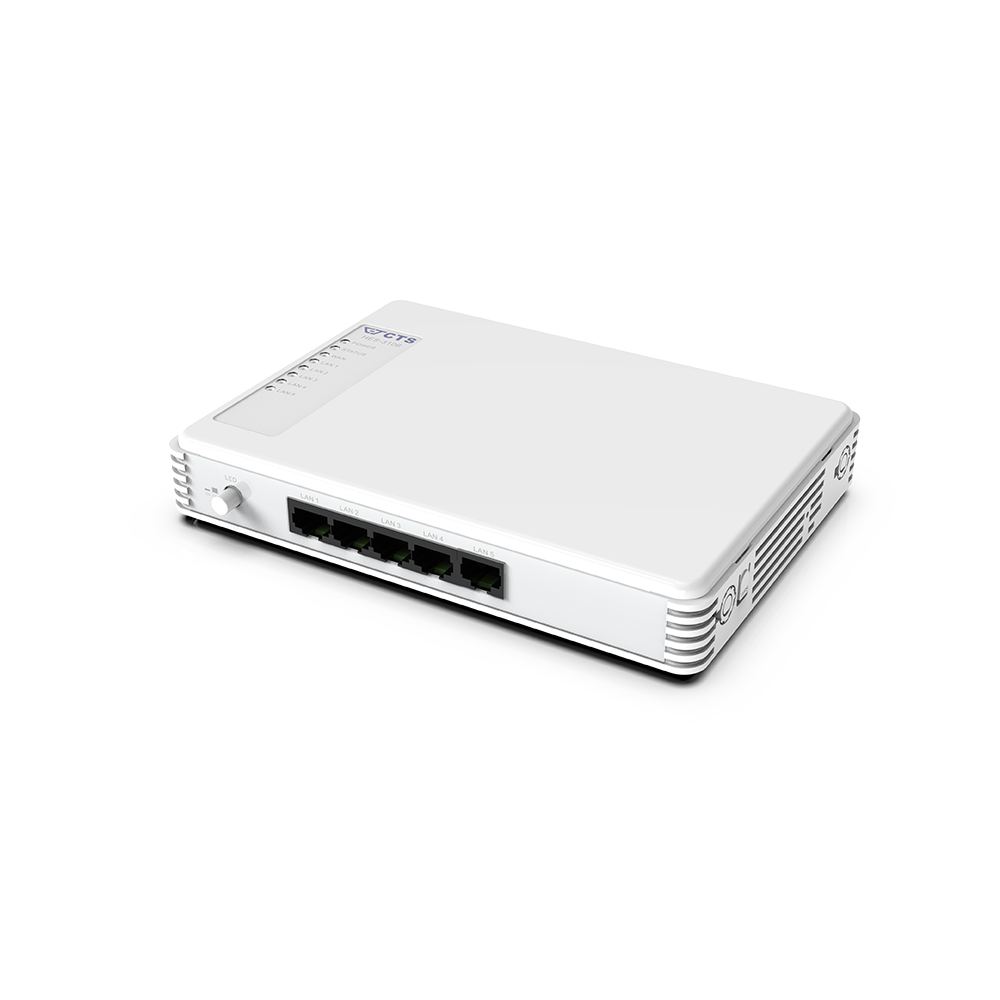

HES-3106B series is a CPE switch with 5-Port 10/100/1000Base-T RJ-45 with 1-Port 100/1000Base-X BOSA-on-board fiber, and is housed with an eye-catching pearl-white case. It supports conversion between 10/100/1000Base-T and 100/1000Base-X network. Also, it is fully compliant with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards. The operation status can be monitored through the comprehensive LED display.
Environmental Condition Operation: 0˚C ~ 50˚C
Storage: -20˚C ~ 60˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 180 x 130 x 30 mm (W x D x H)
Weight: 0.6 Kg
Features
HES-3106B series is a CPE switch with 5-Port 10/100/1000Base-T RJ-45 with 1-Port 100/1000Base-X BOSA-on-board fiber, and is housed with an eye-catching pearl-white case. It supports conversion between 10/100/1000Base-T and 100/1000Base-X network. Also, it is fully compliant with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards. The operation status can be monitored through the comprehensive LED display.
DHCP Auto Provisioning
Automatically upgrades the firmware and configuration from DHCP server to save maintenance cost
Loop Detection
Automatically prevent the switching loops that cause network congestion and failures, and keep your service steadily running as planned
Dual Rate Fiber
Automatically sense and adjust the fiber speed when changes are made in the network environment, and so facilitate a longer lifespan of the product
IPv4/IPv6 Dual Stack
Able to run IPv4 and IPv6 in parallel and be interoperable with other IPv4 / IPv6 / dual-stacked devices, which enables IPv6 management, IPv6 packet forwarding, and MLD v1/v2 Snooping
Fast and Secured Installation
Manage and secure the fiber cable/connector with a management tray, and hence simplify a greenfield deployment
Power Down Trap
Notify NOC when power is shut off and so save the cost of deploying human resources for troubleshooting
iProbe
Advanced diagnostic functionality encompassing IPTV monitoring, end-user device emulation, and cable testing, altogether makes troubleshooting and management easier than ever
* Supported on HES-3106-PLUS/HES-3106B only
IPTV Probe
Monitor the IPTV traffic running in your network and make sure that end-users are receiving signals as expected
Flexible IPTV Deployment
Designed with rich functions in facilitating multimedia streaming and provides a stable IPTV service with high quality
Specification
Interface
- TP Port:
5 x 10/100/1000Base-T RJ-45 - F/O Port:
1 x 100/1000Base-X F/O - CATV RF Receiver Port*:
– 1 x CATV fiber optic input
– 1 x NTSC/PAL CATV coaxial output
LED
- Power
- LAN
- WAN
- Status
Power Requirement
- External Power adaptor
- Input AC: 100V~240V 50/60Hz
- Output DC Rating: 12V/1.5A
- Power Consumption
– AC Side: 5.3W (MAX.)
– DC Side: 4.2W (MAX.)
Hardware
- MAC Address table: 2K
- Non-blocking Switching Fabric: 12Gbps
- Throughput @ 64Bytes: 8.9Mpps
- Memory Buffer: 1Mbit
- Jumbo Frame: 9K Bytes
- Store and Forward Switching Mechanism
- Auto-cross Over for MDI/MDIX in TP Ports
- Auto-negotiation in TP Ports
- Full/Half Duplex Mode Operation
Environmental Condition
- Operation: 0˚C ~ 50˚C
- Storage: -20˚C ~ 60˚C
- Humidity: 5% ~ 90%, Non-condensing
Dimension & Weight
- Size: 180 x 130 x 30mm (W x D x H)
- Size with Cable Tray**: 180 x 180 x 42mm (W x D x H)
- Weight: 0.6 Kg
* Only RF model supports CATV RF receiver port
** HES-FCT-S is Fiber Cable Tray Accessory for HES series
Model
Model | Fiber Port | TP Port | CATV RF | Power Source | ||||||
Speed | Type | Connector | Distance | Port | Speed | Port | Fiber | Coaxial | ||
HES-3106B | 100/1000 | WDM | SC | 10km | 1 | 10/100/1000 | 5 | - | - | External |
HES-3106B | 100/1000 | WDM | SC | 10km | 1 | 10/100/1000 | 5 | 1 | 1 | External |
Download
Model | Info | Version | Download file |
HES-3106B | Datasheet | A02 | |
HES-3106B | User's Manual (HW) | V1.2 | |
HES-3106B | User's Manual (NMS) | V1.3 |
*To update the firmware, unzip the .zip file and upload the *.bin file.
*To use *.mib file for SNMP service, unzip the .zip file.
