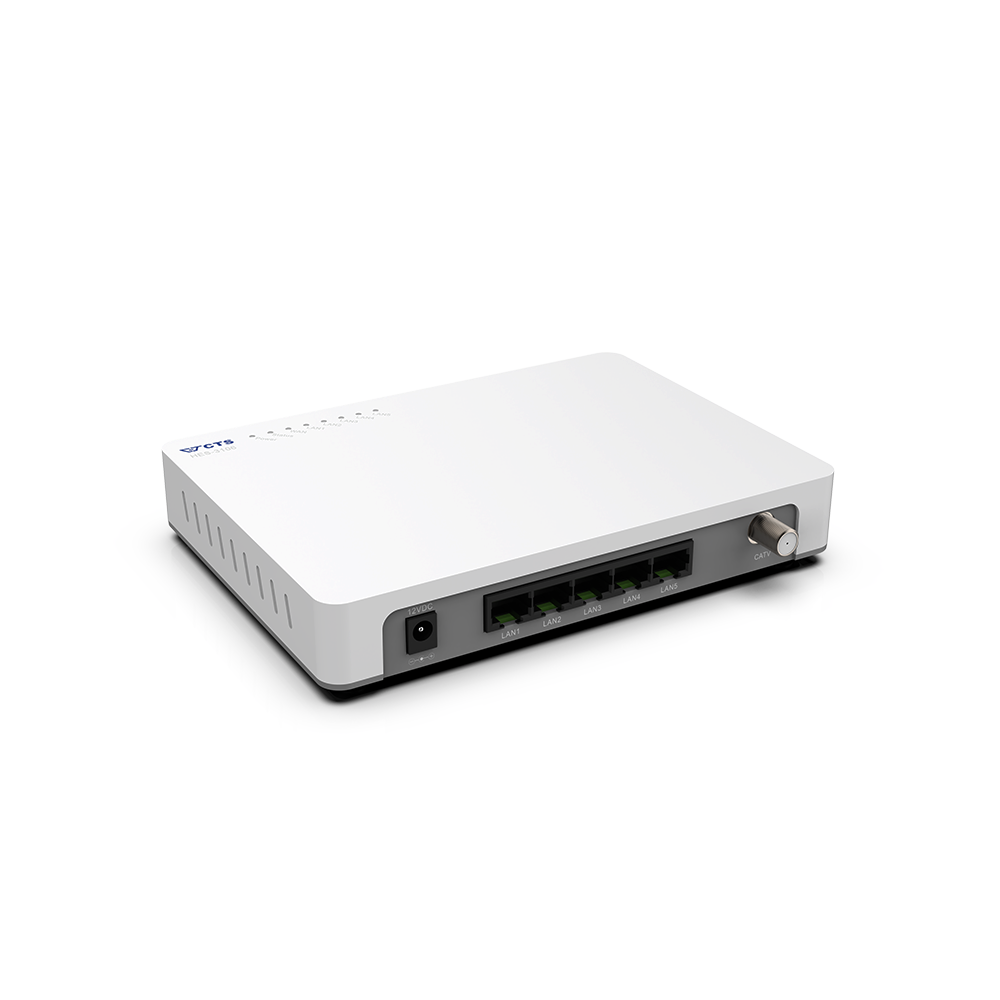

HES-3106-SE
6-Port Management Gigabit Ethernet CPE Switch
Connection Technology System (CTS) HES-3106-SE series includes gigabit fiber managed Ethernet CPE switches models equipped with 5 x 10/100/1000Base-T RJ-45 LAN ports, 1 x 100/1000Base-X fiber BoSA port or SFP slot, and 1 x CATV RF receiver port (on RF model only). With an eye-catching pearl-white housing, the CPE switch supports conversion between 10/100/1000Base-T and gigabit fiber network, and it is fully compliant with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards.
Environmental Condition Operation: 0˚C ~ 50˚C
Storage: -20˚C ~ 60˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 180 x 130 x 30 mm (W x D x H)
Weight: 0.37 Kg
Features
HES-3106-SE series provides a user-friendly but advanced IPv4/IPv6 management interface and abundant L2 switching functions.
The built-in iProbe monitoring toolset, including end-user client emulation and IPTV monitoring, to name a few, fulfills advanced network diagnostics and makes precise fault-identifying required less effort to be achieved, which also brings you extra assistance on preventative maintenance.
IPv4/IPv6 Dual Stack
Able to run IPv4 and IPv6 in parallel and be interoperable with other IPv4 / IPv6 / dual-stacked devices, which enables IPv6 management, IPv6 packet forwarding, and MLD v1/v2 Snooping
Power Down Trap
Notify NOC when power is shut off and so save the cost of deploying human resources for troubleshooting
DHCP Auto Provisioning
Automatically upgrades the firmware and configuration from DHCP server to save maintenance cost
Loop Detection
Automatically prevent the switching loops that cause network congestion and failures, and keep your service steadily running as planned
Dual Rate Fiber
Automatically sense and adjust the fiber speed when changes are made in the network environment, ensuring optimal performance and longevity.
Dual Image
Safeguard against permanent system crash from firmware upgrade failures
Fast and Secured Installation
Manage and secure the fiber cable/connector with a management tray, and hence simplify a greenfield deployment.
Flexible IPTV Deployment
Designed with rich functions in facilitating multimedia streaming and providing a stable IPTV service with high quality
iProbe
Streamlined troubleshooting and management with advanced diagnostics, including IPTV monitoring, end-user device emulation, and cable testing.
Specification
Interface
- TP Port
5 x 10/100/1000Base-T RJ-45 - Fiber Port
1 x 100/1000Base-X SFP - CATV RF Receiver Port*
1 x CATV fiber optic input
1 x NTSC/PAL CATV Coaxial Output
LED
- Power, Status
- Link/Act/Speed (LAN 1~5, WAN)
Power Requirement
- Power Input (Main Body): 12 VDC
- Power Adapter (Including in package)
– Input: 100~240 VAC, 50~60Hz
– Output: 12 VDC
Max. Power Consumption
- 3.6W (12.2BTU/h), Copper & F/O (BOSA)
Traffic Present - 4.2W (14.3BTU/h), Copper & F/O (SFP)
Traffic Present - 4.8W (16.3BTU/h), Copper & F/O (BOSA)
Traffic Present and with RF
Hardware
- MAC Address Table: 4K
- Non-blocking Switching Fabric: 12Gbps
- Throughput @ 64Bytes: 8.9Mpps
- Jumbo Frame: 16K Bytes
- Packet Buffer: 128K Bytes
- Store and Forward Switching Mechanism
- Auto-Cross over for MDI/MDI-X in TP port
- Auto-Negotiation in TP Port
- Full/Half Duplex Mode Operation
Environmental Condition
- Operation: 0˚C~50˚C
- Storage Temperature: -20˚C~60˚C
- Humidity: 5%~90% RH, Non-Condensing
EMC/Safety
CE/FCC Class B
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
- ESD
– Air Discharge: +/-8kV
– Contact Discharge: +/-4kV - EFT
– AC Input: +/-1kV
– Signal (RJ-45): +/-0.5kV - Surge Protection
– AC input: +/-1kV
– Signal (RJ-45): +/-1kV
UKCA/RCM
RoHS 2.0
Dimension & Weight
- Size: 180 x 130 x 30mm (W x D x H)
- Weight: 0.37 Kg
* Only -RF model supports CATV RF receiver port
Topology
Application Diagram
Model
Model | Fiber Port | TP Port | CATV RF | Power Source | ||||||
Speed | Type | Connector | Distance | Port | Speed | Port | Fiber | Coaxial | ||
HES-3106BW2A | 100/1000 | WDM | SC | 10 | 1 | 10/100/1000 | 5 | - | - | External |
HES-3106BW2A | 100/1000 | WDM | SC | 10 | 1 | 10/100/1000 | 5 | 1 | 1 | |
HES-3106SFP-SE-DR | 100/1000 | SFP | - | - | 1 | 10/100/1000 | 5 | - | - | |
