CVT-5102SFP-MG

CVT-5102SFP-MG

CVT-5102SFP-MG

CVT-5102SFP-MG

CVT-5102SFP-MG

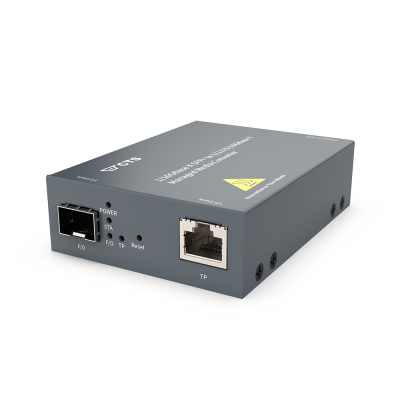

1 x 1/10GBase-X SFP+ to
1 x 100M/1/2.5/5/10GBase-T RJ-45
Managed Standalone Media Converter

The CVT-5102SFP-MG functions as a managed converter between 10G fiber & multi-gigabit copper networks. With advanced Layer 2 features & IP management functions, it helps ensure network security, detect issues, and control data traffic to maintain reliable network performance. Plus, its five mounting options make it adaptable to various deployment scenarios.

Environmental Condition Operation: 0˚C ~ 50˚C
Storage: -20˚C ~ 60˚C
Humidity: 5% ~ 90%, Non-condensing

Dimension Size: 71 x 94 x 26 mm (W x D x H)

Datasheet


Coming Soon

FEATURES

HARDWARE

SPECIFICATION

TOPOLOGY

MODEL

DOWNLOADS

Features

The fanless design reduces dust accumulation and power consumption, delivering zero-noise operation. Plus, ESW-5112-2MG is 8.5 inches in width, altogether making it the best solution for network infrastructure often hindered by scarce installation space.

Multi-G

As bandwidth demand soars to new heights, 100M/ 1G/2.5G/5G/10GBase-T ports allow users to get up to the speed of 2.5/5Gbps.

Power Down Trap

Notify NOC when power is shut off and so save the cost of deploying human resources for troubleshooting

Flexible IPTV Deployment

Designed with rich functions in facilitating multimedia streaming and providing a stable IPTV service with high quality

10G

Equipped with 10G data transmission capacity designed to fulfill the ever-increasing demand for higher bandwidth which is essential for traditional Internet service and premium service alike

Power Redundancy

Transition to the other redundant power module if either of the power sources is down

Multicast VLAN Registration

Reduce the bandwidth required to distribute IPTV multicast streams by means of sharing single traffic across different VLANs

Loop Detection

Automatically prevent the switching loops that cause network congestion and failures, and keep your service steadily running as planned

IPv4/IPv6 Dual Stack

Able to run IPv4 and IPv6 in parallel and be interoperable with other IPv4 / IPv6 / dual-stacked devices, which enables IPv6 management, IPv6 packet forwarding, and MLD v1/v2 Snooping

Intelligent Diagnostics

Allow system operational monitoring in real-time, and instantly fault-identify SFF-8472-specification-compatible optical modules according to user-defined threshold parameters

DHCP Auto Provisioning

Automatically upgrades the firmware and configuration from DHCP server to save maintenance cost

Dual Image

Safeguard against permanent system crash from firmware upgrade failures

Dual Rate Fiber

Automatically sense and adjust the fiber speed when changes are made in the network environment, and so facilitate a longer lifespan of the product

Fanless Design

Designed without a built-in fan which oftentimes results in constant annoying buzzing sounds. The feature prevents the harmful effects of a disruptive environment.

Hardware Overview

ESW-5112_Interface-I
ESW-5112_Interface-II
ESW-5112_Interface-III

Specification

Interface

  • RJ-45 Port
    – 8 x 10/100/1000Base-T RJ-45
    – 2 x 100M/1G/2.5G/5G/10GBase-T RJ-45

  • Fiber Port
    2 x 10GBase-SR/LR SFP+

  • Compatible with 1000Base-X
     Transceiver

  • Console Port
    1 x RS-232 to RJ-45 Serial Port

  • Terminal Block
    1 x Digital Input (Dry Contact)

LED

  • Power A & B
  • Status
  • COM
  • Speed/Link/Act

Dimension & Weight

  • Size: 210 x 235 x 44mm (W x D x H)
  • Weight: 1.8 kg

Power Requirement

  • Input AC: 100V ~ 240V, 50/60Hz, 0.4 ~ 0.2A
  • Input DC:
    – 48V, 0.4A
    – 12V, 3.33A (R7B Adapter)
  • Power Adapter: 100 ~ 240VAC, 48VDC
  • Max. Power Consumption: 26.4W (90BTU/h)

Hardware

  • MAC Address Table: 16K
  • Non-Blocking Switching Fabric: 96Gbps
  • Throughput @ 64Bytes: 71.4Mpps
  • Packet Buffer: 12Mbit
  • Jumbo Frame: 12K Bytes
  • Store and Forward Switching Mechanism
  • Auto-Cross Over for MDI/MDIX in TP Ports
  • Auto-Negotiation in TP Ports
  • Full/Half Duplex Mode Operation

Environmental Condition

  • Operation: 0˚C ~ 50˚C*
  • Storage: -20˚C ~ 60˚C
  • Humidity: 5% ~ 90%, Non-condensing
*Please use industrial SFP/SFP+ transceiver (operation temperature can up to 85˚C) on SFP+ slots (port 11~12) when ESW-5112 is working under 45~50˚C.

EMC/Safety

  • FCC Class A, CE
  • ESD
    – Air Discharge: +/-8kV
    – Contact Discharge: +/-4kV
  • EFT
    – AC Power: +/-1kV
    – DC Power: +/-0.5kV
    – Digital Input: +/-0.5kV
  • Surge Protection: +/-4kV

Topology

Application Diagram

ESW-5112-2MG Application Diagram_20230821

Model

Model

Fiber Port

TP Port

Power Source

Speed
(Gbps)

Type

Port

Speed

Port

ESW-5112-2MG-1A

1/10

SFP+

2

10/100/1000 Mbps

100M/1G/2.5G/5G/10Gbps

8

2

Fixed 1 Internal AC

ESW-5112-2MG-1D

1/10

SFP+

2

10/100/1000 Mbps

100M/1G/2.5G/5G/10Gbps

8

2

Fixed 1 Internal DC 48V

ESW-5112-2MG-1AE

1/10

SFP+

2

10/100/1000 Mbps

100M/1G/2.5G/5G/10Gbps

8

2

Fixed 1 Internal AC
and Fixed 1 External DC 12V

ESW-5112-2MG-1E

1/10

SFP+

2

10/100/1000 Mbps

100M/1G/2.5G/5G/10Gbps

8

2

Fixed 1 External DC 12V

Download

Model

Info

Version

Download file

ESW-5112-2MG

Datasheet

A03

ESW-5112-2MG

User's Manual (HW)

V1.0

ESW-5112-2MG

User's Manual (NMS)

V1.0

ESW-5112-2MG

Firmware

1.00.0S

ESW-5112-2MG

MIB-file

1.00.0S
