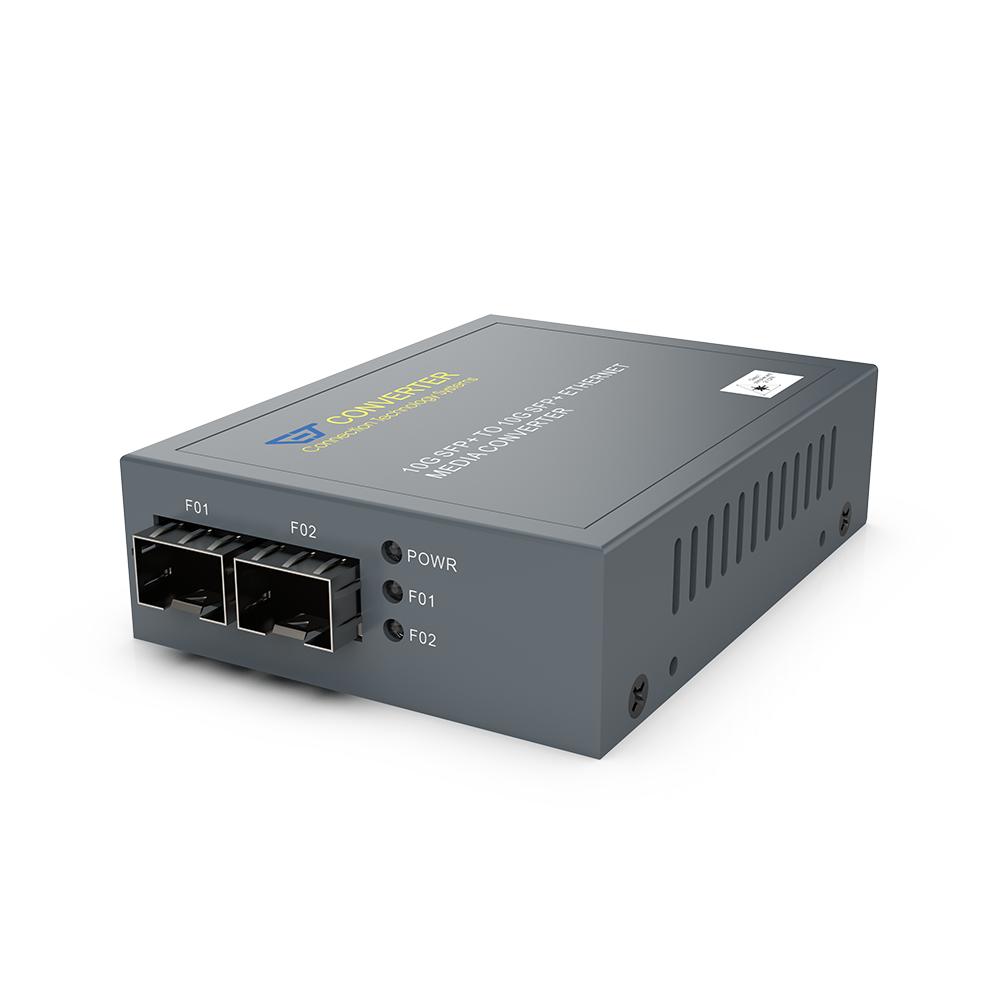

CVT-5002SFP+
10G Ethernet Fiber Media Converter
CVT-5002SFP+ series is a two-port pluggable 10 Gigabit fiber-to-fiber media converter for a number of dissimilar 10 Gigabit fiber devices. The CVT-5002SFP+ series media converter supports the media conversion at 10 Gigabit over link distance up to 300 meters with 10GBase-SR multi-mode fiber or 10GBase-LR single-mode fiber standards. To Deploy the bidirectional media converter, the CVT-5002SFP+ media converter is required to individually connect 10Gbase-SR multi-mode device or 10Gbase-LR single-mode device, or in pairs at each end of long-distance fiber links.
Environmental Condition Operation: 0˚C ~ 50˚C
Storage: -20˚C ~ 60˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 71 x 94 x 26 mm (W x D x H)
Shipping weight: 240 g
The CVT-5002SFP+ series media converter supports the media conversion at 10 Gigabit over link distance up to 300 meters with 10GBase-SR multi-mode fiber or 10GBase-LR single-mode ber standards. To Deploy the bidirectional media converter, the CVT-5002SFP+ media converter is required to individually connect 10Gbase-SR multi-mode device or 10Gbase-LR single-mode device, or in pairs at each end of long-distance fiber links.
10G
Equipped with 10G data transmission capacity designed to fulfill the ever-increasing demand for higher bandwidth which is essential for traditional Internet service and premium service alike
Plug-and-play
No more complex, error-prone configuration prior to deployments, and maximum device compatibility in system integration
Specification
Interface
- 2 x 10GBase-R SFP+ Slot
LED
- Power
- F/O 1
- F/O 2
Power Requirement
- Power Input (Main body): DC 5V
- Power Adapter (Including in package):
– Input: AC 100~240V, 50/60Hz
– Output: DC 5V, 2A - Max. Power Consumption: 5W (17 BTU/h)
Environmental Condition
- Operation: 0˚C ~ 50˚C
- Storage: -20˚C ~ 60˚C
- Humidity: 5% ~ 90%, Non-condensing
Dimension & Weight
- Size: 71 x 94 x 26mm (W x D x H)
- Weight: 240 g
EMC/Safety
- FCC Class A, CE
- ESD
– Air Discharge: +/-8kV
– Contact Discharge: +/-4kV - EFT
– AC Input: +/-1kV - Surge Protection: +/-1kV
Model
Model | Fiber Port | TP Port | Support Power Source | ||||
Speed | Type | Distance | Ports | Speed | Port | ||
CVT-5002SFP+ | 10 | SFP | - | 2 | - | - | External AC to DC Power Adapter |
Download
Model | Info | Version | Download file |
CVT-5002SFP+ | Datasheet | A05 | |
CVT-5002SFP+ | User's Manual (HW) | V2.0 |
